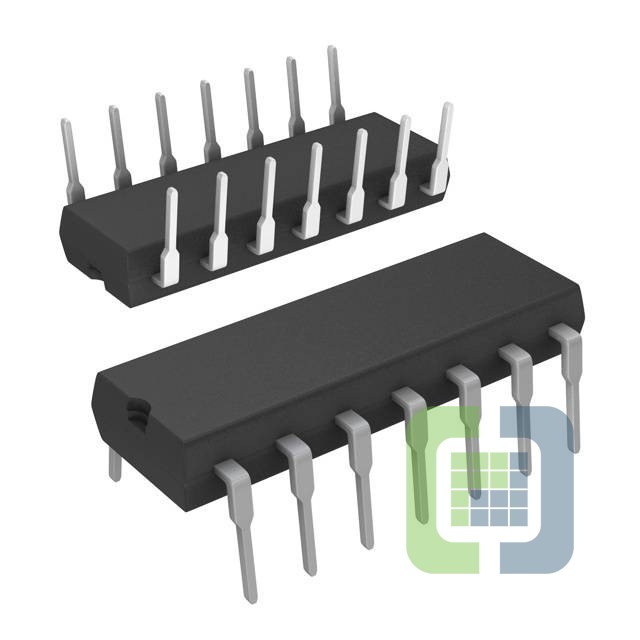

MC33060APG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR FLYBACK 14DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MC33060APG Datasheet
-
ECAD Model
- Share
In Stock: 122
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive or Negative, Isolation Capable
- Topology:Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7V ~ 40V
- Frequency - Switching:25kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:-
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-DIP (0.300", 7.62mm)
- Supplier Device Package:14-PDIP
