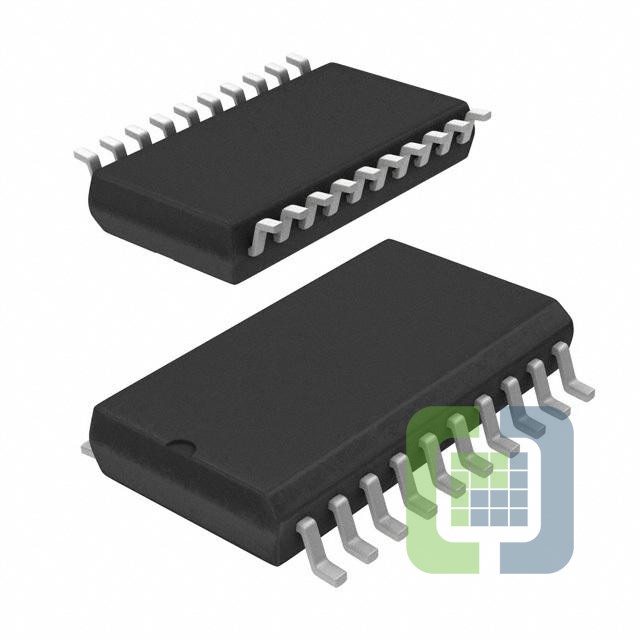

MAX742CWP+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST 20SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX742CWP+ Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Up
- Output Configuration:Positive or Negative
- Topology:Boost
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.2V ~ 10V
- Frequency - Switching:100kHz, 200kHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:20-SOIC
