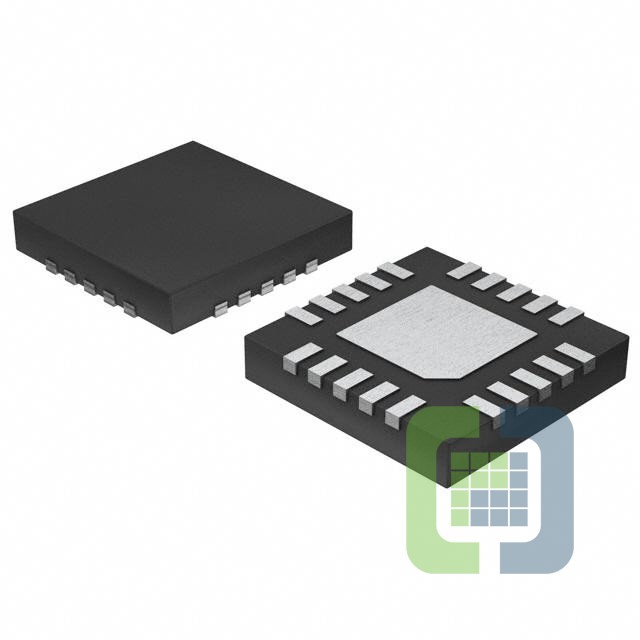

MAX1980ETP+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 20-TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1980ETP+T Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Quick-PWM™
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V
- Frequency - Switching:200kHz, 300kHz, 550kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, On Time Control
- Operating Temperature:-40°C ~ 100°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-WQFN Exposed Pad
- Supplier Device Package:20-TQFN (5x5)
