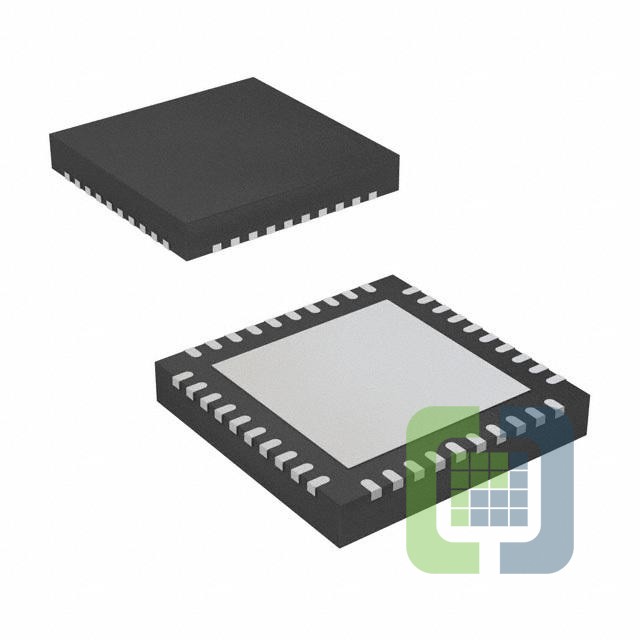

NCP81232MNTXG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 40QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP81232MNTXG Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:4
- Output Phases:4
- Voltage - Supply (Vcc/Vdd):4.5V ~ 20V
- Frequency - Switching:200kHz ~ 1.2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 100°C (TA)
- Mounting Type:Surface Mount
- Package / Case:40-VFQFN Exposed Pad
- Supplier Device Package:40-QFN (5x5)
