IR3566AMIS02TRP
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK 48VQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet IR3566AMIS02TRP Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Type:PWM
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:7
- Output Phases:6
- Voltage - Supply (Vcc/Vdd):3.3V
- Frequency - Switching:200kHz ~ 2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:I²C, PMBus, SMBus
- Control Features:Enable, Power Good
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

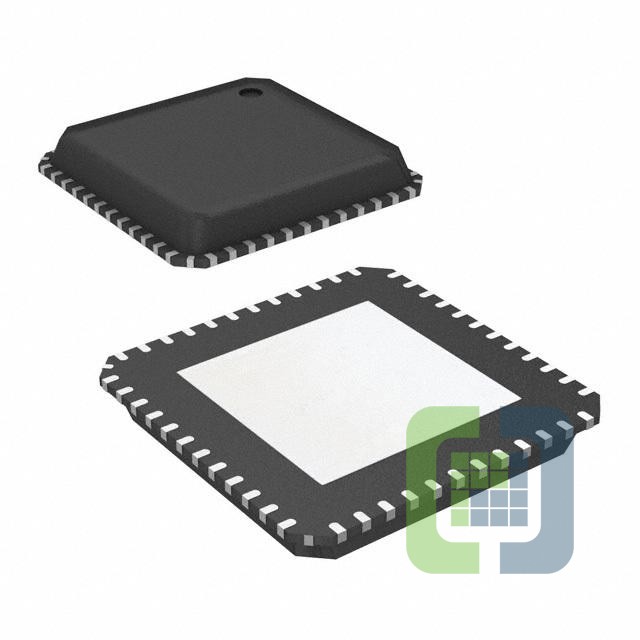

- Package / Case:48-VFQFN Exposed Pad
- Supplier Device Package:PG-VQFN-48-900
