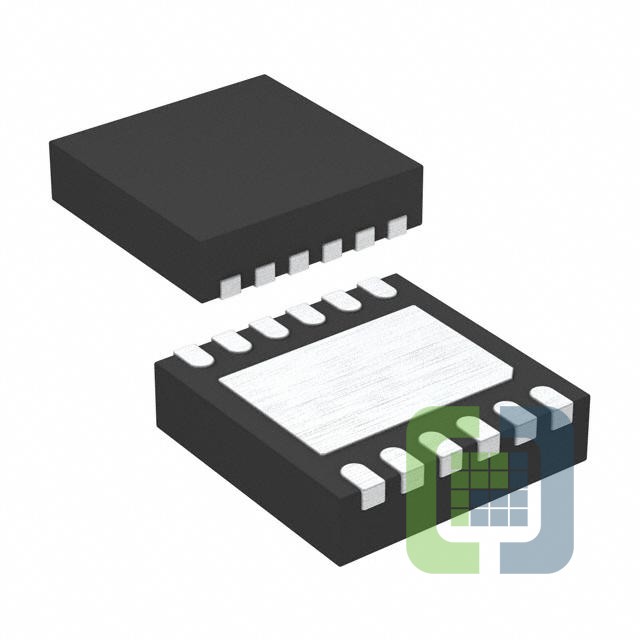

LTC3822EDD-1
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC POWER MANAGEMENT
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3822EDD-1 Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.75V ~ 4.5V
- Frequency - Switching:300kHz, 550kHz, 750kHz
- Duty Cycle (Max):99%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:12-WFDFN Exposed Pad
- Supplier Device Package:12-DFN (3x3)
