MAX15005AAUA/V+

Technical Details

• Series:Automotive, AEC-Q100
• Package:Tube
• Part Status:Obsolete
• Output Type:Transistor Driver
• Function:Step-Up, Step-Up/Step-Down
• Output Configuration:Positive, Isolation Capable
• Topology:Boost, Flyback, SEPIC
• Number of Outputs:1
• Output Phases:1
• Voltage - Supply (Vcc/Vdd):4.5V ~ 40V

• Frequency - Switching:15kHz ~ 1MHz
• Duty Cycle (Max):80%
• Synchronous Rectifier:No
• Clock Sync:Yes
• Serial Interfaces:-
• Control Features:Enable, Frequency Control, Soft Start
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

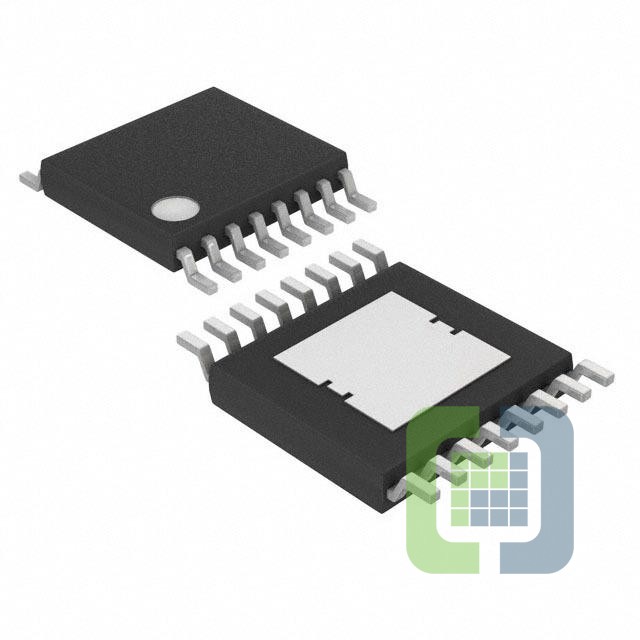

• Package / Case:16-TSSOP (0.173", 4.40mm Width) Exposed Pad
• Supplier Device Package:16-TSSOP-EP
