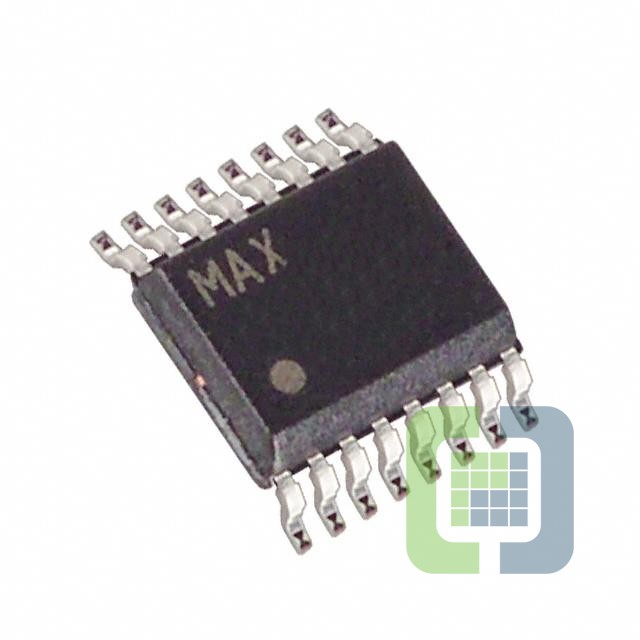

MAX15046BAEE+CHH
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- Description40V, HIGH-PERFORMANCE, SYNCHRONO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 13,260
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 40V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):87.5%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:16-QSOP
