MAX15026CETD+TW
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLOW-COST, SMALL, 4.5V TO 28V WID
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 28V
- Frequency - Switching:200kHz ~ 2MHz
- Duty Cycle (Max):88%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

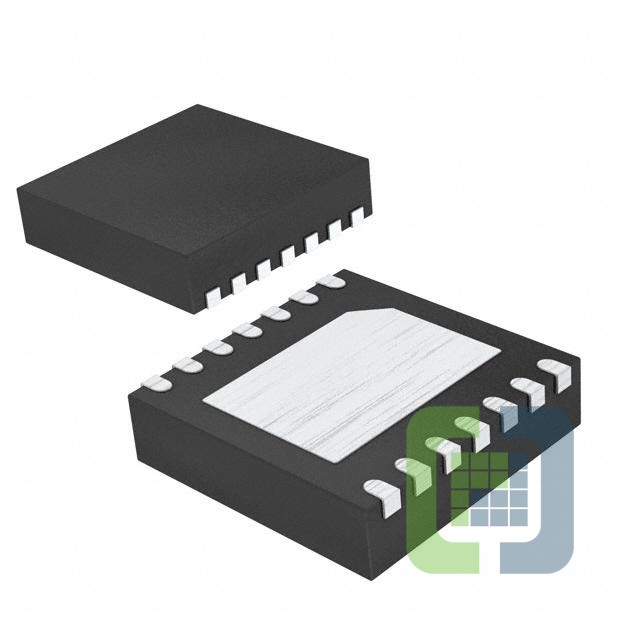

- Package / Case:14-WFDFN Exposed Pad
- Supplier Device Package:14-TDFN-EP (3x3)
