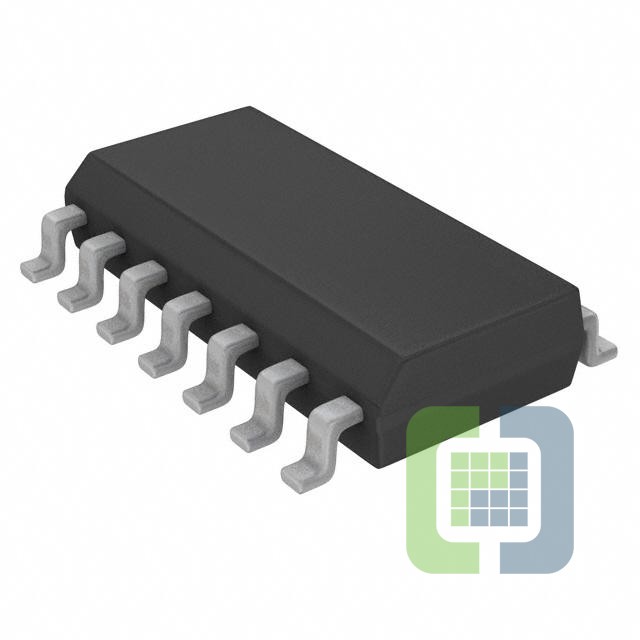

SG2843D

Technical Details

• Series:Military, MIL-STD-883
• Package:Tube
• Part Status:Active
• Output Type:Transistor Driver
• Function:Step-Down
• Output Configuration:Positive
• Topology:Buck
• Number of Outputs:1
• Output Phases:1
• Voltage - Supply (Vcc/Vdd):30V

• Frequency - Switching:100Hz ~ 500kHz
• Duty Cycle (Max):95%
• Synchronous Rectifier:No
• Clock Sync:No
• Serial Interfaces:-
• Control Features:-
• Operating Temperature:-25°C ~ 85°C (TA)
• Mounting Type:Surface Mount
• Package / Case:14-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:14-SOIC
