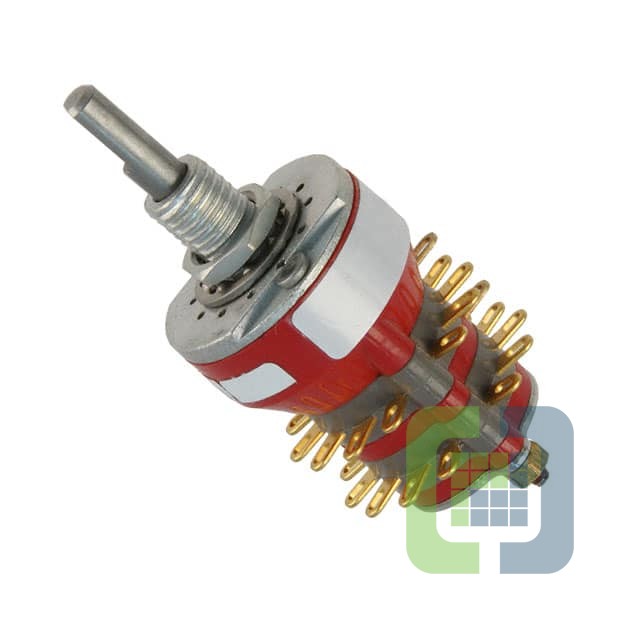

71AD30-02-1-AJS
Grayhill, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCH ROTARY 2-12POS 250MA 115V
- CategoryRotary Switches
- Datasheet 71AD30-02-1-AJS Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$18.1872
- 25$18.1872
Quote It
Technical Details
- Series:71
- Package:Bulk
- Part Status:Active
- Number of Positions:2 ~ 12
- Index Stops:Adjustable
- Number of Decks:2
- Number of Poles per Deck:1
- Circuit per Deck:SP12T
- Contact Timing:Shorting (MBB)
- Current Rating (Amps):250mA (AC/DC)
- Voltage Rating - AC:115 V
- Voltage Rating - DC:30 V
- Actuator Type:Flatted (3.17mm Dia)
- Actuator Length:9.53mm
- Angle of Throw:30°
- Contact Material:Silver Alloy
- Contact Finish:-
- Mounting Type:Panel Mount
- Termination Style:Solder Lug
- Features:-
- Depth Behind Panel:24.87mm
