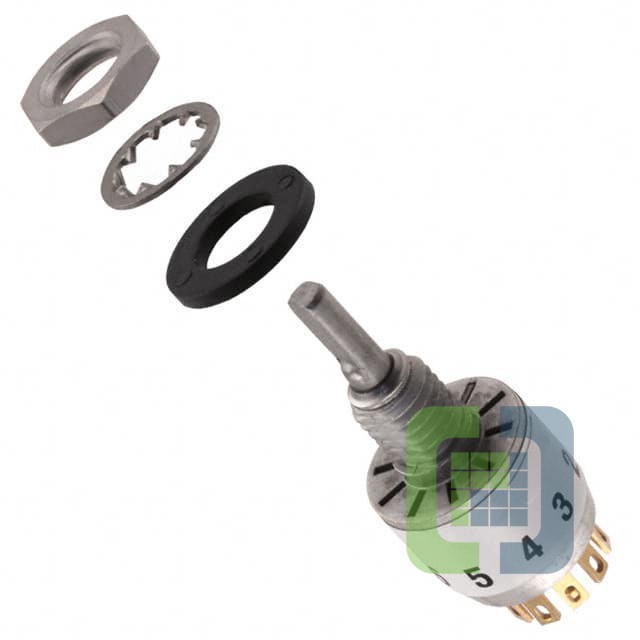

50D36-01-2-AJS
Grayhill, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCH ROTARY 2-5POS 150MA 115V
- CategoryRotary Switches
- Datasheet 50D36-01-2-AJS Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$18.2816
- 25$18.2816
Quote It
Technical Details
- Series:50
- Package:Bulk
- Part Status:Active
- Number of Positions:2 ~ 5
- Index Stops:Adjustable
- Number of Decks:1
- Number of Poles per Deck:2
- Circuit per Deck:DP5T
- Contact Timing:Shorting (MBB)
- Current Rating (Amps):150mA (AC), 200mA (DC)
- Voltage Rating - AC:115 V
- Voltage Rating - DC:28 V
- Actuator Type:Flatted (3.17mm Dia)
- Actuator Length:9.53mm
- Angle of Throw:36°
- Contact Material:-
- Contact Finish:Gold
- Mounting Type:Panel Mount
- Termination Style:Solder Lug
- Features:-
- Depth Behind Panel:18.77mm
