- Lifecycle status Active
- RoHS RoHS Compliant

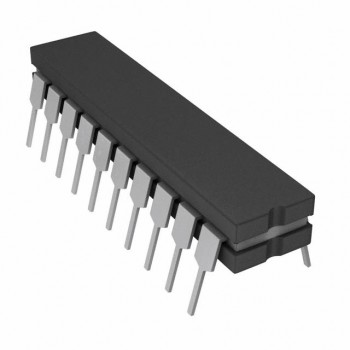

- DescriptionIC DAC 8BIT V-OUT 20CDIP
- CategoryData Acquisition - Digital to Analog Converters (DAC)
- Datasheet AD7226TQ Datasheet
-
ECAD Model
- Share
In Stock: 271
Can ship immediately
Pricing:
- 1$109.74
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Number of Bits:8
- Number of D/A Converters:4
- Settling Time:4µs
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:Parallel
- Reference Type:External
- Voltage - Supply, Analog:11.4V ~ 16.5V, -5V
- Voltage - Supply, Digital:14.25V ~ 15.75V
- INL/DNL (LSB):±0.5 (Max), ±1 (Max)
- Architecture:R-2R
- Operating Temperature:-40°C ~ 85°C
- Package / Case:20-CDIP (0.300", 7.62mm)
- Supplier Device Package:20-CDIP
- Mounting Type:Through Hole
