3-1734248-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FPC VERT 36POS 1.00MM SMD
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet 3-1734248-6 Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Flat Flex Type:FPC
- Mounting Type:Surface Mount
- Connector/Contact Type:Contacts, Vertical - 1 Sided
- Number of Positions:36
- Pitch:0.039" (1.00mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.217" (5.50mm)
- Locking Feature:Slide Lock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Polyamide (PA9T), Nylon 9T
- Actuator Material:Polyamide (PA9T), Nylon 9T
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:125V
- Operating Temperature:-20°C ~ 85°C
- Material Flammability Rating:UL94 V-0
Related Products

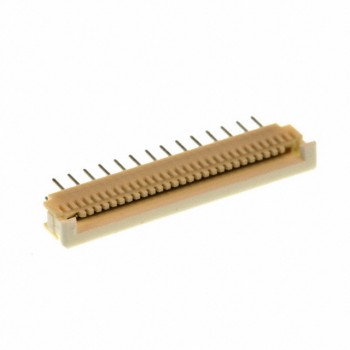

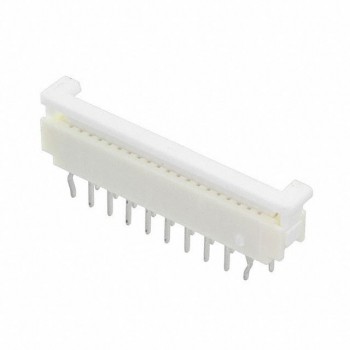

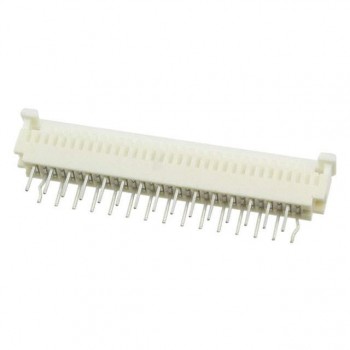

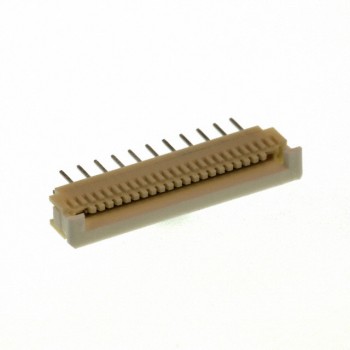

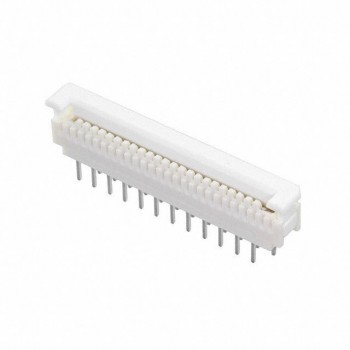

CONN FPC VERT 22POS 1.00MM PCB
