In Stock: 177

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:XF2W
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Flat Flex Type:FPC
  • Mounting Type:Surface Mount, Right Angle
  • Connector/Contact Type:Contacts, Top and Bottom
  • Number of Positions:26
  • Pitch:0.020" (0.50mm)
  • Termination:Solder
  • FFC, FCB Thickness:0.30mm
  • Height Above Board:0.044" (1.12mm)



  • Locking Feature:Rotary Lock, Backlock
  • Cable End Type:Tapered
  • Contact Material:Copper Alloy
  • Contact Finish:Gold
  • Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
  • Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
  • Features:-
  • Voltage Rating:50V
  • Operating Temperature:-30°C ~ 85°C
  • Material Flammability Rating:UL94 V-0

Related Products


XF3A-1755-41A

CONN FPC TOP 17POS 0.30MM R/A

XF3A-1755-41A Datasheet

Call for price


XF3A-2355-41A

CONN FPC TOP 23POS 0.30MM R/A

XF3A-2355-41A Datasheet

Call for price


XF3A-2555-41A

CONN FPC TOP 25POS 0.30MM R/A

XF3A-2555-41A Datasheet

Call for price


AYF362535

FPC CONNECTOR Y3BC (0.3 MM PITCH

AYF362535 Datasheet

Call for price


AYF363135

FPC CONNECTOR Y3BC (0.3 MM PITCH

AYF363135 Datasheet

Call for price


AYF363935

FPC CONNECTOR Y3BC (0.3 MM PITCH

AYF363935 Datasheet

Call for price

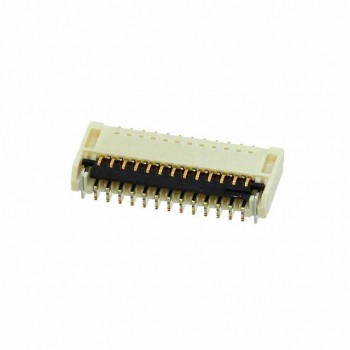

5019122590
