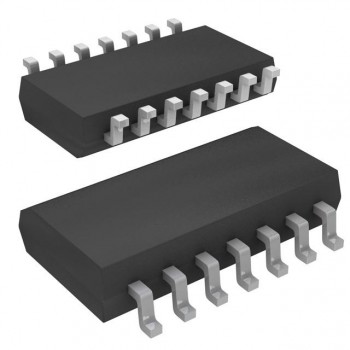

DM74ALS32M
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC GATE OR 4CH 2-INP 14SOIC
- CategoryLogic - Gates and Inverters
- Datasheet DM74ALS32M Datasheet
-
ECAD Model
- Share
In Stock: 17,845
Can ship immediately
Pricing:
- 1$0.15
Quote It
Technical Details
- Series:74ALS
- Package:Tube
- Part Status:Obsolete
- Logic Type:OR Gate
- Number of Circuits:4
- Number of Inputs:2
- Features:-
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Max):-
- Current - Output High, Low:400µA, 8mA
- Logic Level - Low:0.8V
- Logic Level - High:2V
- Max Propagation Delay @ V, Max CL:14ns @ 5V, 50pF
- Operating Temperature:0°C ~ 70°C
- Mounting Type:Surface Mount
- Supplier Device Package:14-SOIC
- Package / Case:14-SOIC (0.154", 3.90mm Width)
