SN74LVC00AQPWRG4Q1

Texas Instruments
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionIC GATE NAND 4CH 2-INP 14TSSOP
  • CategoryLogic - Gates and Inverters
  • ECAD Model
  • Share
In Stock: 2,182

Can ship immediately

Pricing:
  • 1$0.59
  • 2,000$0.19685

Quote It

Technical Details

  • Series:Automotive, AEC-Q100, 74LVC
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Logic Type:NAND Gate
  • Number of Circuits:4
  • Number of Inputs:2
  • Features:-
  • Voltage - Supply:2V ~ 3.6V
  • Current - Quiescent (Max):10 µA



  • Current - Output High, Low:24mA, 24mA
  • Logic Level - Low:0.8V
  • Logic Level - High:2V
  • Max Propagation Delay @ V, Max CL:4.3ns @ 3.3V, 50pF
  • Operating Temperature:-40°C ~ 125°C
  • Mounting Type:Surface Mount
  • Supplier Device Package:14-TSSOP
  • Package / Case:14-TSSOP (0.173", 4.40mm Width)

Related Products


SN74LVC08AQPWRG4Q1

IC GATE AND 4CH 2-INP 14TSSOP

  • 1: $0.59000
  • 2000: $0.19685

SN74AUC2G08YZTR

IC GATE AND 2CH 2-INP 8DSBGA

  • 1: $0.21000

74LVC2G14GF/S500125

INVERTER, LVC/LCX/Z SERIES XSON6

  • 1: $0.21000

74LVQ04SCX

FUNC, 1 INPUT, CMOS, PDSO14

74LVQ04SCX Datasheet
  • 1: $0.21000
  • 2500: $0.20287

74HCT4075DB,112

IC GATE OR 3CH 3-INP 14SSOP

74HCT4075DB,112 Datasheet
  • 1: $0.21000

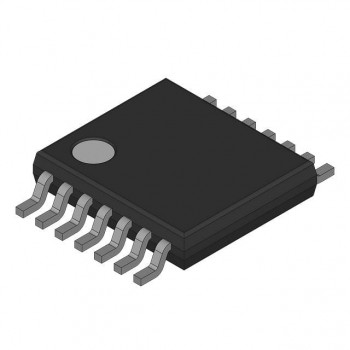

74LVC132APW/S400118

74LVC132APW - NAND GATE

  • 1: $0.21000

MC14584BFG

IC INVERTER 6CH 6-INP SOEIAJ

MC14584BFG Datasheet
  • 1: $0.21000

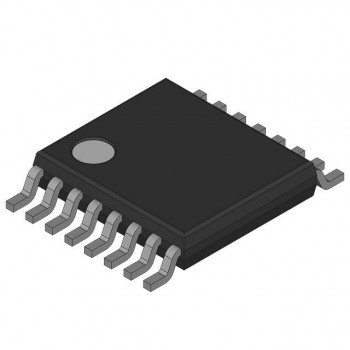

74HC4075PW118
