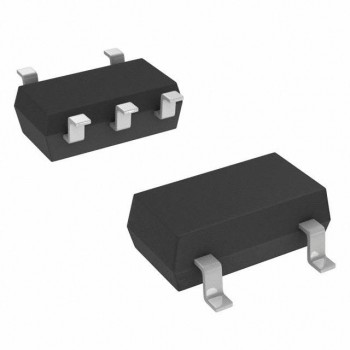

NC7S08P5
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionAND GATE, HC/UH SERIES, 1 FUNC,
- CategoryLogic - Gates and Inverters
- Datasheet NC7S08P5 Datasheet
-
ECAD Model
- Share
In Stock: 63,376
Can ship immediately
Pricing:
- 1$0.24
- 1,250$0.2346
Quote It
Technical Details
- Series:7S
- Package:Bulk
- Part Status:Active
- Logic Type:AND Gate
- Number of Circuits:1
- Number of Inputs:2
- Features:-
- Voltage - Supply:2V ~ 6V
- Current - Quiescent (Max):1 µA
- Current - Output High, Low:2.6mA, 2.6mA
- Logic Level - Low:0.5V
- Logic Level - High:1.5V
- Max Propagation Delay @ V, Max CL:17ns @ 6V, 50pF
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Supplier Device Package:SC-70-5
- Package / Case:5-TSSOP, SC-70-5, SOT-353
