74ACT11032DBRG4
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC GATE OR 4CH 2-INP 16SSOP
- CategoryLogic - Gates and Inverters
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:74ACT
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Logic Type:OR Gate
- Number of Circuits:4
- Number of Inputs:2
- Features:-
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Max):4 µA
- Current - Output High, Low:24mA, 24mA
- Logic Level - Low:0.8V
- Logic Level - High:2V
- Max Propagation Delay @ V, Max CL:8.1ns @ 5V, 50pF
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Supplier Device Package:16-SSOP
- Package / Case:16-SSOP (0.209", 5.30mm Width)
Related Products
IC GATE OR 4CH 2-INP 16TSSOP
Call for price
IC GATE OR 4CH 2-INP 16TSSOP
Call for price
IC INVERTER 3CH 3-INP 8VSSOP
Call for price
IC GATE NOR 4CH 2-INP 14SOP
Call for price
IC GATE NOR 4CH 2-INP 14SOP
Call for price
IC INVERTER 6CH 6-INP 16SOIC
Call for price

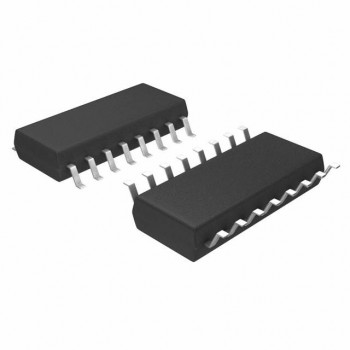

IC INVERTER 6CH 6-INP 16SO
Call for price

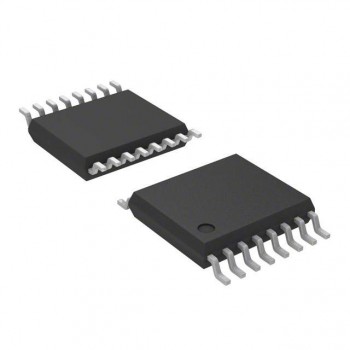

IC INVERTER 6CH 6-INP 16TSSOP
