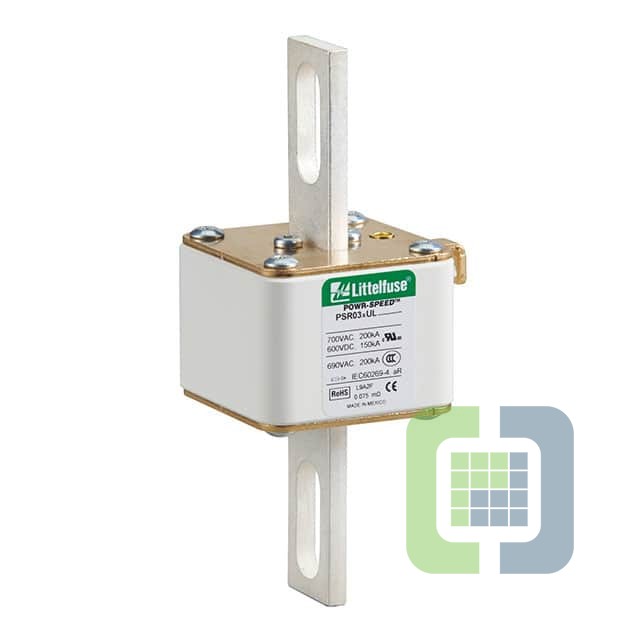

PSR030UL0200Z
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFUSE SQUARE 200A 700VAC/600VDC
- CategoryElectrical, Specialty Fuses
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$155.70667
Quote It
Technical Details
- Series:POWR-SPEED® PSR
- Package:Box
- Part Status:Active
- Mounting Type:Bolt Mount
- Fuse Type:Square
- Current Rating (Amps):200A
- Voltage Rating - AC:700 V
- Voltage Rating - DC:600 V
- Response Time:Fast Blow
- Applications:Semiconductors
- Features:Indicating
- Class:-
- Approval Agency:CE, cURus, UL
- Operating Temperature:-55°C ~ 125°C
- Breaking Capacity @ Rated Voltage:200kA AC, 150kA DC
- Package / Case:-
- Size / Dimension:1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm)
