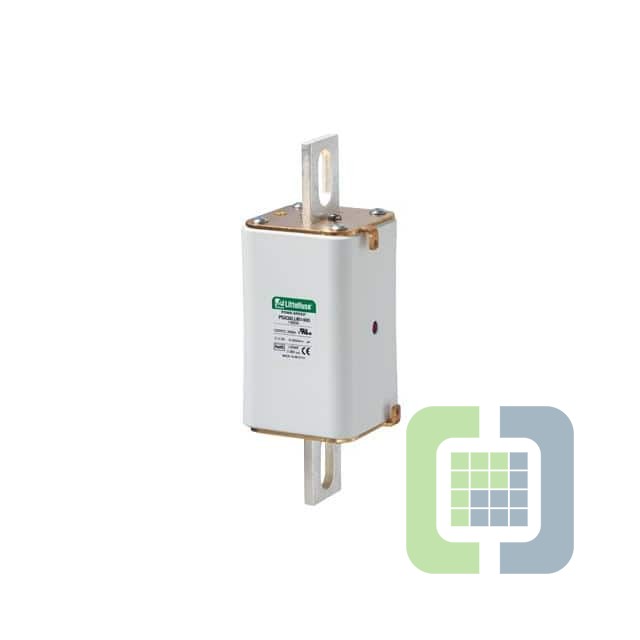

PSX3XLUB1250X
Wickmann / Littelfuse
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFUSE SEMI 1500VDC 3XL SIZE 1250A
- CategoryElectrical, Specialty Fuses
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
- 1$2303.91
Quote It
Technical Details
- Series:POWR-SPEED® PSX
- Package:Box
- Part Status:Active
- Mounting Type:Bolt Mount
- Fuse Type:Square
- Current Rating (Amps):1.25kA
- Voltage Rating - AC:-
- Voltage Rating - DC:1.5 kV
- Response Time:Fast Blow
- Applications:Semiconductors
- Features:Indicating
- Class:-
- Approval Agency:CE, cURus, UL
- Operating Temperature:-55°C ~ 125°C
- Breaking Capacity @ Rated Voltage:200kA
- Package / Case:Rectangular, Blade
- Size / Dimension:5.067" L x 2.894" W x 3.130" H (128.70mm x 73.50mm x 79.50mm)
