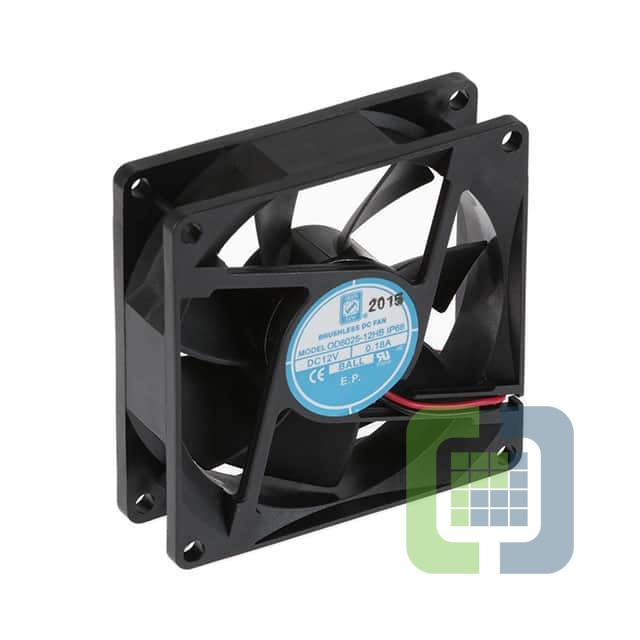

OD8025-12HBIP68
Orion Fans
- Lifecycle status Active
- RoHS RoHS Compliant
- Description12VDC 80X80X25MM IP68
- CategoryDC Brushless Fans (BLDC)
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
- 1$13.6
Quote It
Technical Details
- Series:OD8025
- Package:Box
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 80mm L x 80mm H
- Width:25.00mm
- Air Flow:40.0 CFM (1.12m³/min)
- Static Pressure:0.230 in H2O (57.3 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Auto Restart
- Noise:33.0dB
- Power (Watts):2.2 W
- RPM:3300 RPM
- Termination:2 Wire Leads
- Ingress Protection:IP68 - Dust Tight, Waterproof
- Operating Temperature:5 ~ 149°F (-15 ~ 65°C)
- Approval Agency:cURus, TUV
- Weight:0.191 lb (86.64 g)
