EAHP2024WA8

Everlight Electronics
In Stock: 120

Can ship immediately

Pricing:
  • 1$8.5
  • 144$8.1825

Quote It

Technical Details

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Type:Chip On Board (COB)
  • Color:White, Warm
  • CCT (K):3500K
  • Wavelength:-
  • Configuration:Rectangle
  • Luminous Flux @ Current/Temperature:1700lm (Typ)
  • Current - Test:500mA
  • Temperature - Test:25°C



  • Voltage - Forward (Vf) (Typ):30V
  • Lumens/Watt @ Current - Test:113 lm/W
  • Current - Max:550mA
  • CRI (Color Rendering Index):90
  • Viewing Angle:120°
  • Features:-
  • Size / Dimension:24.00mm L x 20.00mm W
  • Height:2.00mm
  • Light Emitting Surface (LES):16.20mm Dia
  • Lens Type:Domed

Related Products


EAHP2024WB0

HIGH POWER COB WHT

EAHP2024WB0 Datasheet
  • 1: $8.50000
  • 144: $8.18250

EAHP2024WB5

HIGH POWER COB WHT

EAHP2024WB5 Datasheet
  • 1: $8.50000
  • 144: $8.18250

EAHP2024WB8

HIGH POWER COB WHT

EAHP2024WB8 Datasheet
  • 1: $8.50000
  • 144: $8.18250

L235-2790AHLCBAAC0

LED 3535L 2700K 90CRI WARM WHITE

L235-2790AHLCBAAC0 Datasheet
  • 1: $8.51540
  • 600: $8.51540

L235-4090AHLCBAAC0

LED 3535L 4000K 90CRI NEU WHITE

L235-4090AHLCBAAC0 Datasheet
  • 1: $8.51540
  • 600: $8.51540

BXRC-20B4001-D-73-SE

LED COB VERO 18 SE 2000K ROUND

BXRC-20B4001-D-73-SE Datasheet
  • 1: $8.52000
  • 50: $8.21367
  • 100: $7.60524

BXRC-30G400C-B-73-SE

LED COB VERO 18 SE 3000K ROUND

BXRC-30G400C-B-73-SE Datasheet
  • 1: $8.52000
  • 50: $8.21367
  • 100: $7.60524

BXRC-17E4000-B-74-SE

VERO SE 18B WARM WHITE LED ARRAY

BXRC-17E4000-B-74-SE Datasheet
  • 1: $8.52000
  • 100: $7.94444

BXRC-17E4000-D-74-SE

VERO SE 18D WARM WHITE LED ARRAY

BXRC-17E4000-D-74-SE Datasheet
  • 1: $8.52000
  • 100: $7.94444

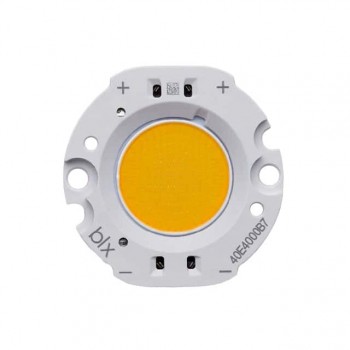

BXRC-25E4000-B-74-SE
