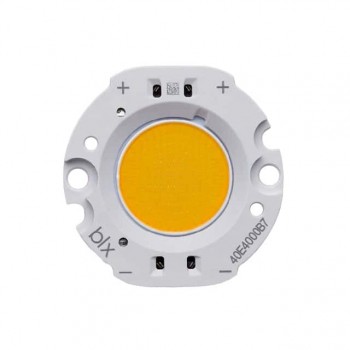

BXRC-27E4000-D-72-SE

Bridgelux, Inc.
In Stock: 121

Can ship immediately

Pricing:
  • 1$8.52
  • 100$7.94444

Quote It

Technical Details

  • Series:Vero® SE 18 Array
  • Package:Tray
  • Part Status:Active
  • Type:Chip On Board (COB)
  • Color:White, Warm
  • CCT (K):2700K 2-Step MacAdam Ellipse
  • Wavelength:-
  • Configuration:Round
  • Luminous Flux @ Current/Temperature:4138lm (Typ)
  • Current - Test:1.05A
  • Temperature - Test:85°C



  • Voltage - Forward (Vf) (Typ):28.3V
  • Lumens/Watt @ Current - Test:139 lm/W
  • Current - Max:2.1A
  • CRI (Color Rendering Index):80
  • Viewing Angle:120°
  • Features:-
  • Size / Dimension:36.20mm Dia
  • Height:3.60mm
  • Light Emitting Surface (LES):18.40mm Dia
  • Lens Type:Flat
