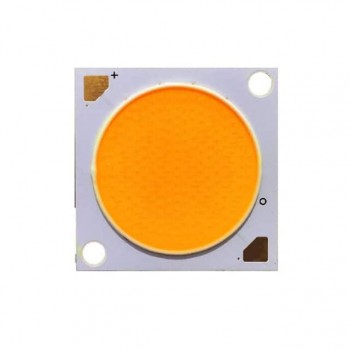

BXRE-27E6500-C-73
Bridgelux, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB V22 2700K SQUARE
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet BXRE-27E6500-C-73 Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$13.07007
- 150$13.07007
Quote It
Technical Details
- Series:Gen 7 V22 Array
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):2700K 3-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:10048lm (Typ)
- Current - Test:1.44A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):50.7V
- Lumens/Watt @ Current - Test:138 lm/W
- Current - Max:2.88A
- CRI (Color Rendering Index):80
- Viewing Angle:120°
- Features:-
- Size / Dimension:28.00mm L x 28.00mm W
- Height:1.70mm
- Light Emitting Surface (LES):22.60mm Dia
- Lens Type:Flat
