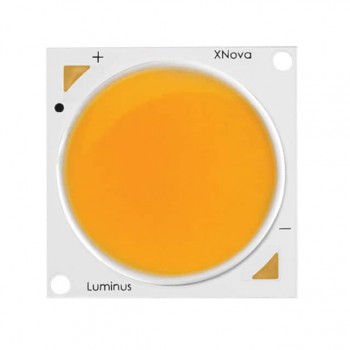

CHM-27-27-80-36-AA00-F2-3
Luminus Devices
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB CHM27 WARM WHITE SQUARE
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CHM-27-27-80-36-AA00-F2-3 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$18.3425
- 400$17.39375
Quote It
Technical Details
- Series:CHM-27
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):2700K 3-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:9730lm (Typ)
- Current - Test:2.7A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):35V
- Lumens/Watt @ Current - Test:103 lm/W
- Current - Max:5.4A
- CRI (Color Rendering Index):80
- Viewing Angle:120°
- Features:-
- Size / Dimension:27.90mm L x 27.90mm W
- Height:1.37mm
- Light Emitting Surface (LES):26.50mm Dia
- Lens Type:Flat
