• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionSWITCH SNAP ACT SPDT 100MA 125V
  • CategorySnap Action, Limit Switches
  • ECAD Model
  • Share
In Stock: 167

Can ship immediately

Pricing:
  • 1$3.0731
  • 100$2.6852

Quote It

Technical Details

  • Series:D3V
  • Package:Bulk
  • Part Status:Active
  • Circuit:SPDT
  • Switch Function:On-Mom
  • Current Rating (Amps):100mA (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Lever, Simulated Roller
  • Mounting Type:Chassis Mount



  • Termination Style:Quick Connect - 0.187" (4.7mm)
  • Ingress Protection:IP40
  • Features:-
  • Operating Force:30gf
  • Release Force:-
  • Pretravel:0.157" (4.0mm)
  • Differential Travel:0.060" (1.5mm)
  • Overtravel:0.062" (1.6mm)
  • Operating Temperature:-25°C ~ 85°C

Related Products


D3V-11G6M-1A5-K

SWITCH SNAP ACTION SPDT 11A 250V

D3V-11G6M-1A5-K Datasheet
  • 1: $3.07550
  • 10: $2.71453
  • 25: $2.53336

D3V-16G6M-1A5-K

SWITCH SNAP ACTION SPDT 16A 250V

D3V-16G6M-1A5-K Datasheet
  • 1: $3.07550
  • 10: $2.71453
  • 25: $2.53336

D2HW-C241H

SUBMINIATURE BASIC SWITCH

  • 1: $3.07800

D2HW-BR271HS

SUBMINIATURE BASIC SWITCH

  • 1: $3.07800

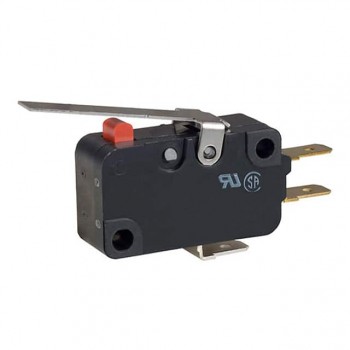

D3V-011-1C23-K

SWITCH SNAP ACT SPDT 100MA 125V

D3V-011-1C23-K Datasheet
  • 1: $3.07840
  • 10: $2.71938
  • 25: $2.53819

D3V-012-1A3-K

SWITCH SNAP ACT SPDT 100MA 125V

D3V-012-1A3-K Datasheet
  • 1: $3.07840
  • 10: $2.71938
  • 25: $2.53819

D3V-63M-1C24

SWITCH SNAP ACTION SPDT 6A 250V

D3V-63M-1C24 Datasheet
  • 1: $3.08090
  • 10: $2.71714
  • 25: $2.53610

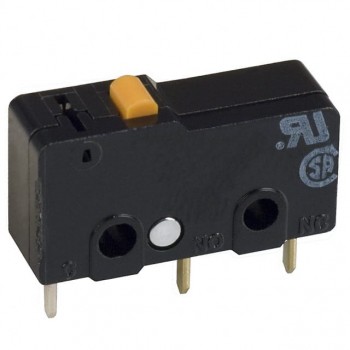

SS-01GL1375-FD

SWITCH SNAP ACTION SPDT

SS-01GL1375-FD Datasheet
  • 1: $3.08328
  • 500: $2.69414

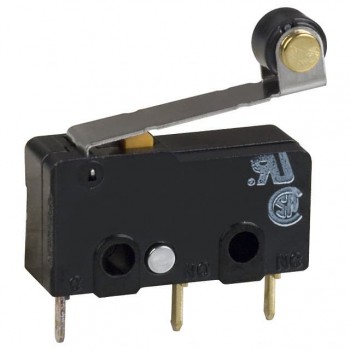

SS-5GL2-FD1
