- Lifecycle status Active
- RoHS RoHS Compliant

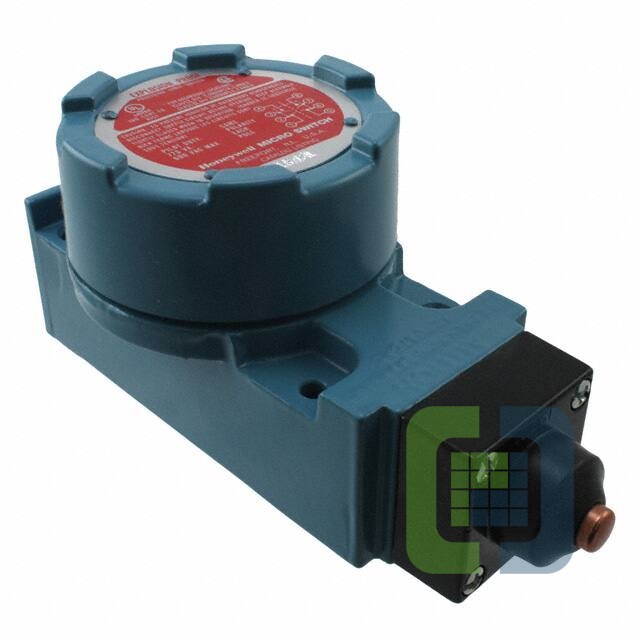

- DescriptionSWITCH SNAP ACTION DPDT 10A 120V
- CategorySnap Action, Limit Switches
- Datasheet LSXC4L Datasheet
-
ECAD Model
- Share
In Stock: 161
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:LSX
- Package:Bulk
- Part Status:Obsolete
- Circuit:DPDT (DB/DM)
- Switch Function:On-Mom
- Current Rating (Amps):10A (AC), 800mA (DC)
- Voltage Rating - AC:120 V
- Voltage Rating - DC:115 V
- Actuator Type:Round (Pin Plunger)
- Mounting Type:Chassis Mount
- Termination Style:Screw Terminal
- Ingress Protection:-
- Features:Explosion Proof
- Operating Force:1814gf
- Release Force:-
- Pretravel:0.070" (1.78mm)
- Differential Travel:0.020" (0.5mm)
- Overtravel:0.190" (4.8mm)
- Operating Temperature:-12°C ~ 93°C
