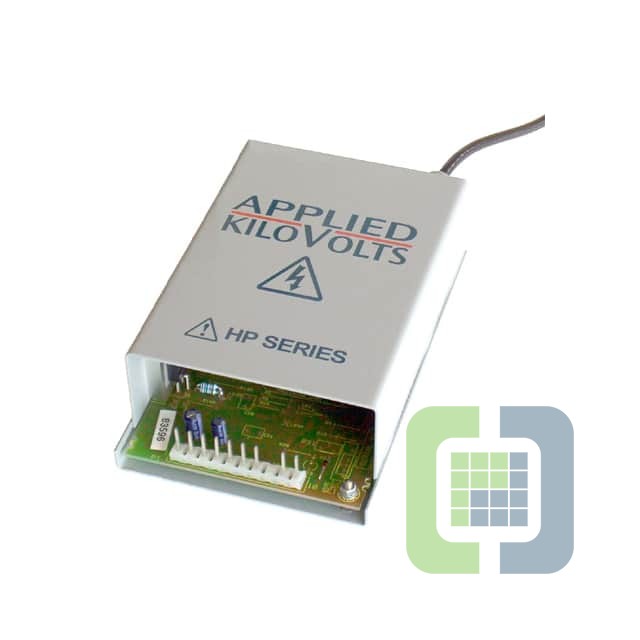

HP020RIP020

Technical Details

• Series:HP (10W)
• Package:Box
• Part Status:Active
• Type:Enclosed, High Voltage
• Voltage - Input (Min):21.6V
• Voltage - Input (Max):26.4V
• Number of Outputs:1
• Voltage - Output 1:50V ~ 20000V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-

• Current - Output (Max):400µA
• Power (Watts):8W
• Voltage - Isolation:-
• Applications:ITE (Commercial)
• Efficiency:-
• Operating Temperature:0°C ~ 50°C
• Mounting Type:Chassis Mount
• Size / Dimension:8.27" L x 4.72" W x 2.17" H (210.0mm x 120.0mm x 55.0mm)
• Approval Agency:cURus, UL
• Standard Number:-
