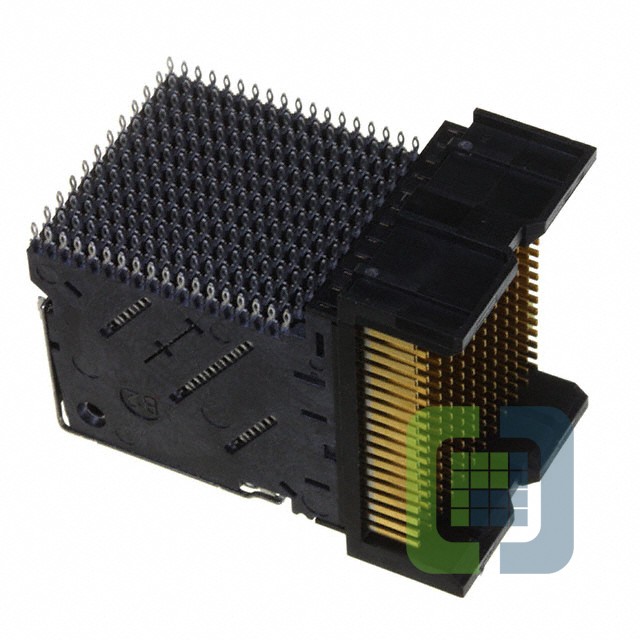

10077555-101LF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER HD 216POS EDGE MNT
- CategoryBackplane Connectors - Specialized
- Datasheet 10077555-101LF Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ZipLine™
- Package:Tube
- Part Status:Obsolete
- Connector Usage:Backplane
- Connector Type:Header, Male Pins
- Connector Style:High Density (HDC, HDI, HPC)
- Number of Positions:216
- Number of Positions Loaded:All
- Pitch:0.071" (1.80mm)
- Number of Rows:18
- Number of Columns:12
- Mounting Type:Board Edge, Through Hole, Right Angle
- Termination:Press-Fit
- Contact Layout, Typical:72 Signal Pairs, 72 Ground
- Features:-
- Contact Finish:Gold or Gold, GXT™
- Contact Finish Thickness:30.0µin (0.76µm)
- Color:Black
