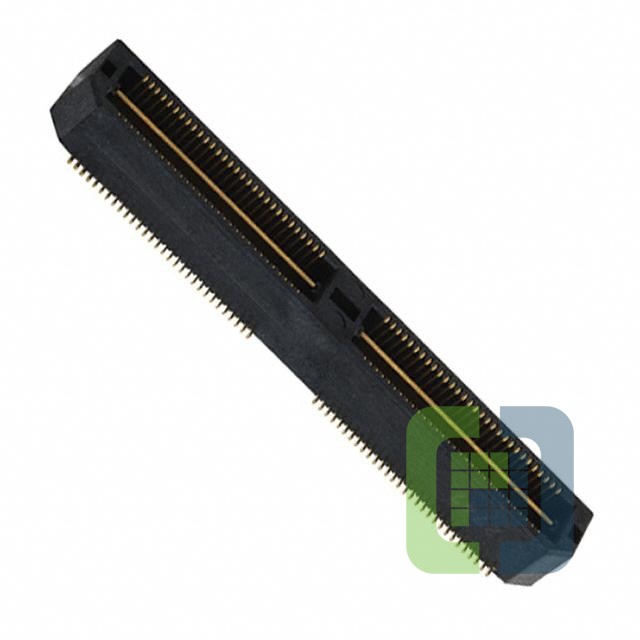

QTH-060-01-L-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTH-060-01-L-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 1,603
Can ship immediately
Pricing:
- 1$12.49
- 10$11.75405
- 25$11.42328
- 50$10.65224
- 100$10.2848
- 250$9.55017
- 500$9.36652
- 1,000$8.9992
Quote It
Technical Details
- Series:Q Strip® QTH
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.160" (4.06mm)
