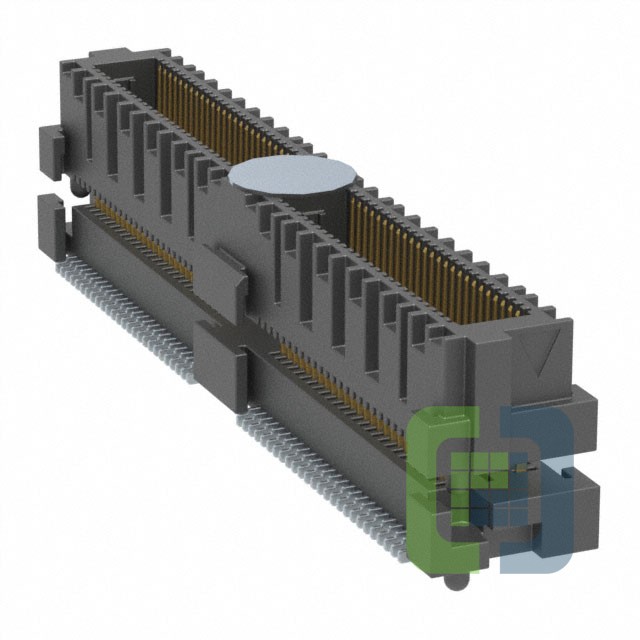

QMS-052-09.75-SL-D-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 104POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-052-09.75-SL-D-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 846
Can ship immediately
Pricing:
- 1$19.38
- 150$13.845
- 300$12.922
- 750$12.27591
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:104
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:14mm, 16mm
- Height Above Board:0.368" (9.35mm)
