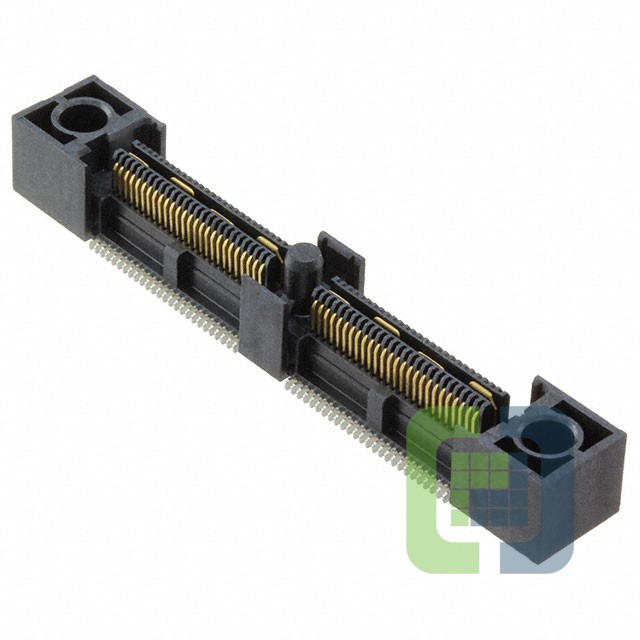

QFS-052-04.25-L-D-A-GP
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 104POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QFS-052-04.25-L-D-A-GP Datasheet
-
ECAD Model
- Share
In Stock: 357
Can ship immediately
Pricing:
- 1$17.56
- 10$16.96829
- 26$16.38246
- 52$15.79738
- 104$15.21229
- 260$14.91977
- 520$14.6272
- 1,014$14.04211
Quote It
Technical Details
- Series:Power Q2™ QFS
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:104
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Mating Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 11mm, 14mm
- Height Above Board:0.278" (7.06mm)
