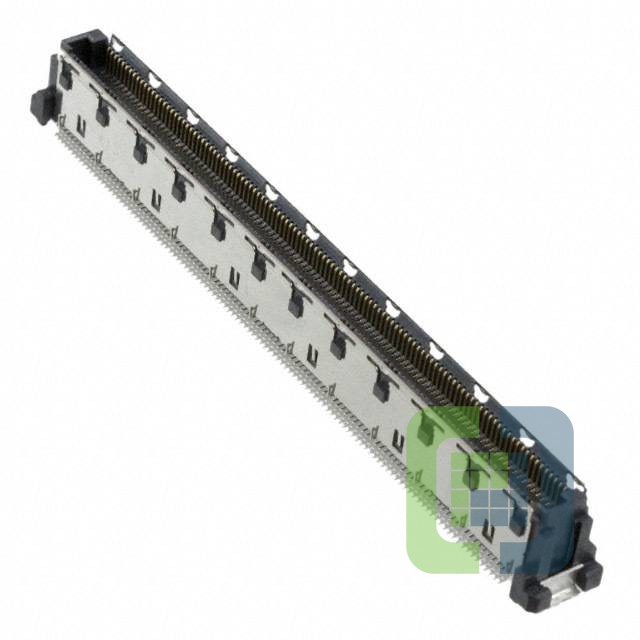

3-6318491-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 220POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 3-6318491-6 Datasheet
-
ECAD Model
- Share
In Stock: 1,171
Can ship immediately
Pricing:
- 1$23.76
- 10$22.21128
- 30$20.14545
- 60$19.62878
- 120$17.56242
- 270$16.52937
- 510$16.21948
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:220
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Plate
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:5mm, 8mm
- Height Above Board:0.293" (7.45mm)
