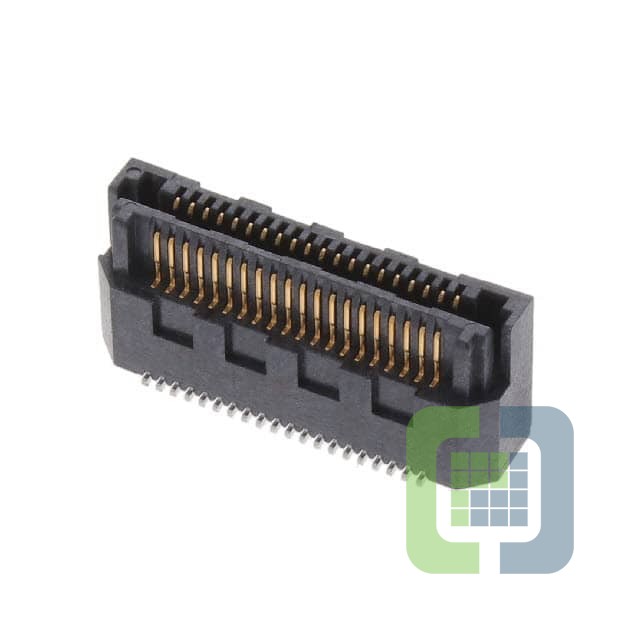

LSS-120-02-F-DV-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSS-120-02-F-DV-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 776
Can ship immediately
Pricing:
- 1$4.18
- 350$4.18
- 700$3.90133
- 1,050$3.62267
- 1,750$3.553
- 2,450$3.48333
Quote It
Technical Details
- Series:Razor Beam™ LSS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:40
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:9mm, 10mm, 12mm
- Height Above Board:0.287" (7.30mm)
