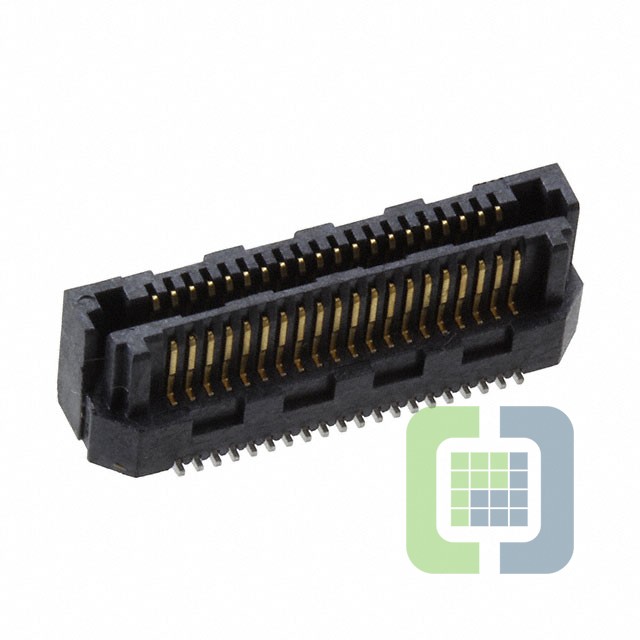

LSS-120-03-L-DV-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSS-120-03-L-DV-A Datasheet
-
ECAD Model
- Share
In Stock: 490
Can ship immediately
Pricing:
- 1$4.17
- 33$3.66947
- 132$3.336
- 528$2.83559
- 1,023$2.4186
Quote It
Technical Details
- Series:Razor Beam™ LSS
- Package:Tube
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:40
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:7mm, 8mm, 10mm
- Height Above Board:0.209" (5.30mm)
