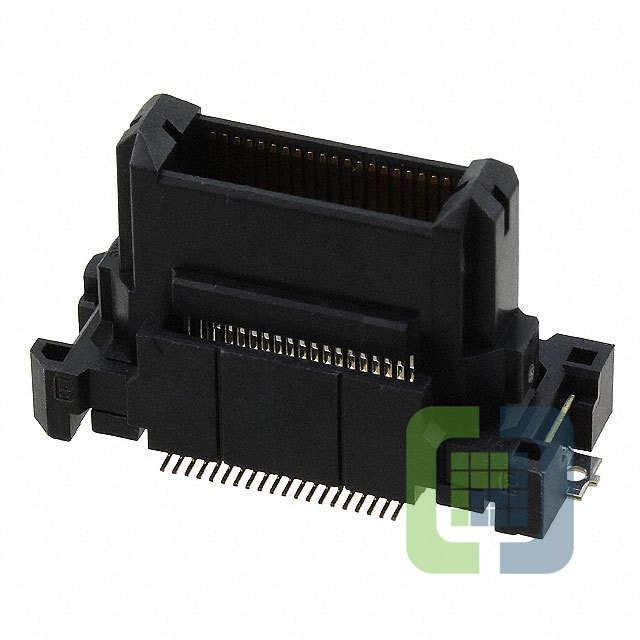

FX20-40P-0.5SV15
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX20-40P-0.5SV15 Datasheet
-
ECAD Model
- Share
In Stock: 1,052
Can ship immediately
Pricing:
- 1$4.87
- 10$4.6701
- 25$4.28092
- 50$4.08633
- 100$3.89175
- 250$3.4053
Quote It
Technical Details
- Series:FunctionMax™ FX20
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:15mm, 25mm
- Height Above Board:0.520" (13.20mm)
