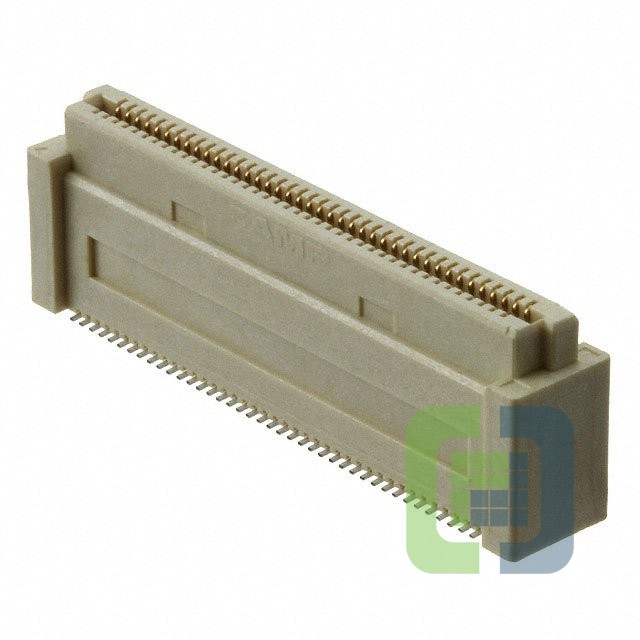

5-5179010-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5-5179010-3 Datasheet
-
ECAD Model
- Share
In Stock: 1,567
Can ship immediately
Pricing:
- 1$5.94
- 12$5.71944
- 36$5.27528
- 60$5.05297
- 108$4.83062
- 252$4.27517
- 504$4.16407
- 1,008$3.60853
- 2,508$3.38632
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:13mm
- Height Above Board:0.463" (11.75mm)
