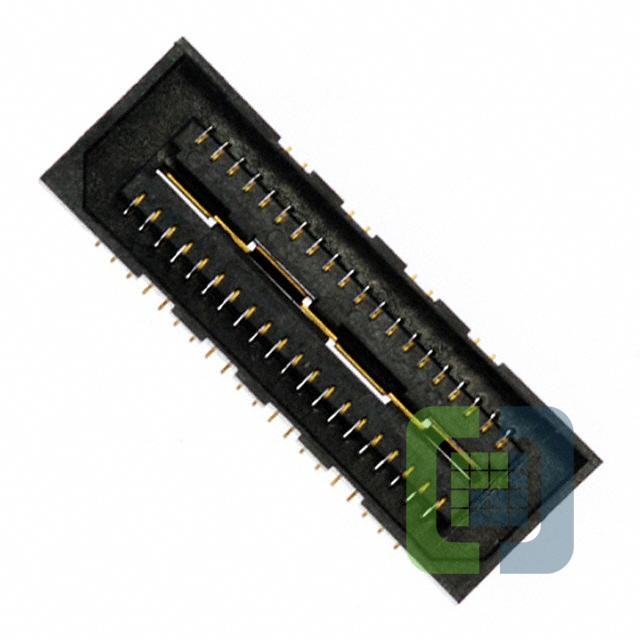

QSE-020-01-F-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSE-020-01-F-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 371
Can ship immediately
Pricing:
- 1$6.67
- 10$6.09095
- 25$5.80091
- 96$5.22086
- 192$4.6407
- 288$4.20565
- 576$3.91561
- 1,056$3.69808
- 2,592$3.55306
Quote It
Technical Details
- Series:Q Strip® QSE
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
