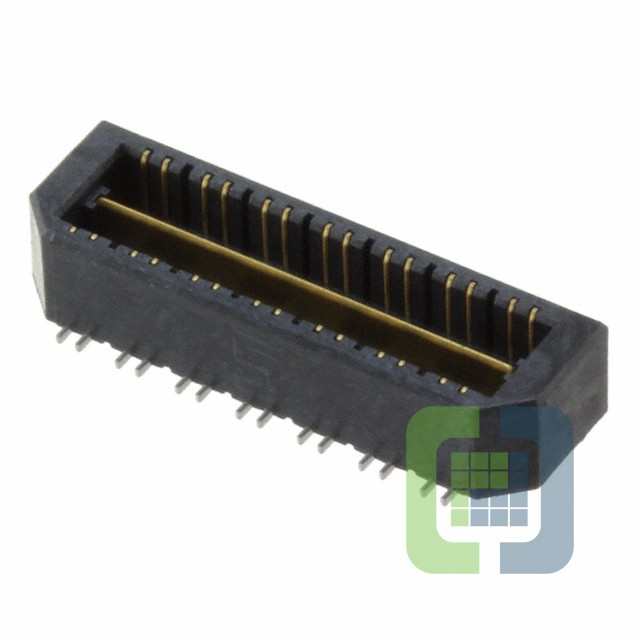

QTE-014-01-L-D-DP-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY PLG 28P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTE-014-01-L-D-DP-A Datasheet
-
ECAD Model
- Share
In Stock: 333
Can ship immediately
Pricing:
- 1$7.42
- 10$6.77286
- 25$6.45035
- 96$5.80533
- 192$5.16027
- 288$4.67651
- 576$4.35399
- 1,056$4.1121
- 2,592$3.95084
Quote It
Technical Details
- Series:Q Strip® QTE
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Male
- Number of Positions:28
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.168" (4.27mm)
