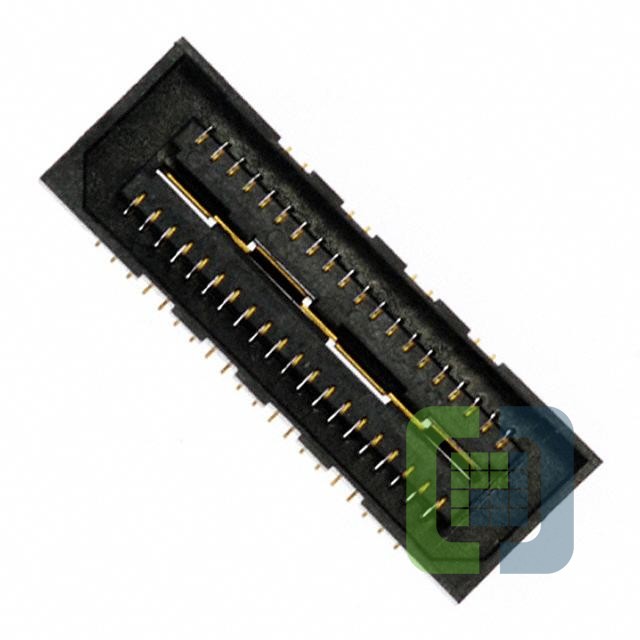

QSE-020-01-C-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSE-020-01-C-D-A Datasheet
-
ECAD Model
- Share
In Stock: 928
Can ship immediately
Pricing:
- 1$11.55
- 10$10.68375
- 25$10.10648
- 50$9.5865
- 100$8.95125
- 250$7.79625
- 500$7.5075
- 1,000$7.21875
Quote It
Technical Details
- Series:Q Strip® QSE
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
