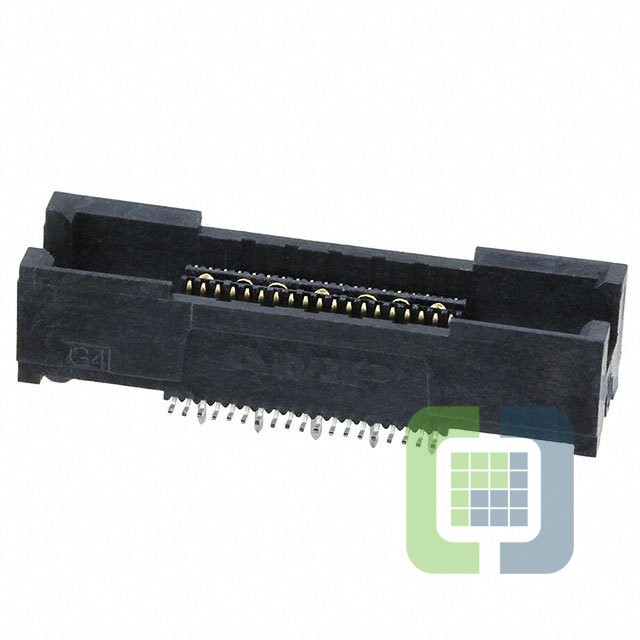

5767081-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 38P SMD PALLAD-NICKEL
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5767081-1 Datasheet
-
ECAD Model
- Share
In Stock: 363
Can ship immediately
Pricing:
- 1$19.84
- 21$18.42036
- 42$16.53109
- 63$16.05863
- 105$14.16944
- 252$13.2248
- 504$12.9414
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:38
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Palladium-Nickel
- Contact Finish Thickness:5.00µin (0.127µm)
- Mated Stacking Heights:6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
- Height Above Board:0.236" (6.00mm)
