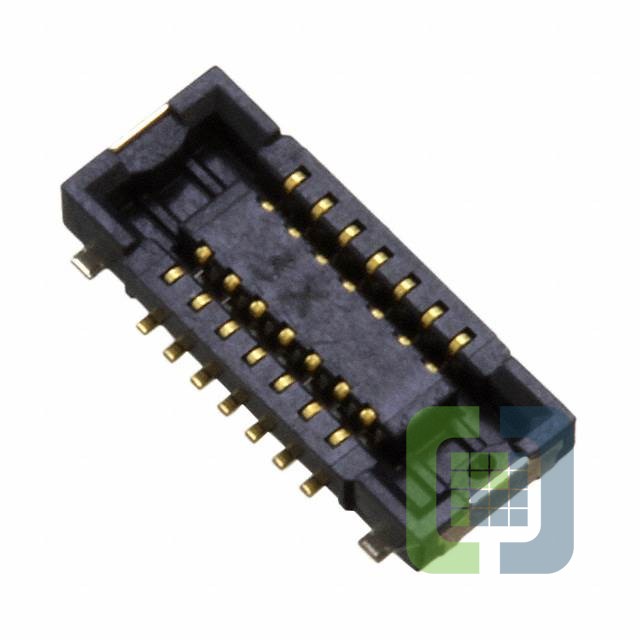

AXE514127
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 14POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXE514127 Datasheet
-
ECAD Model
- Share
In Stock: 5,211
Can ship immediately
Pricing:
- 1$1.76
- 1,000$0.975
- 2,000$0.9425
- 3,000$0.91
- 5,000$0.8645
- 10,000$0.845
Quote It
Technical Details
- Series:A4S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Center Strip Contacts
- Number of Positions:14
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.8mm, 1mm
- Height Above Board:0.030" (0.75mm)
