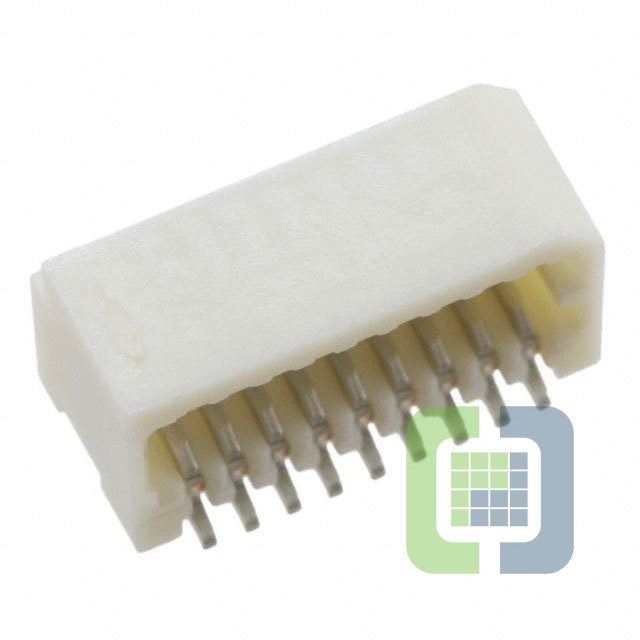

0533091870
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 18POS R/A SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0533091870 Datasheet
-
ECAD Model
- Share
In Stock: 4,338
Can ship immediately
Pricing:
- 1$2.24
- 1,000$1.2426
- 2,000$1.20118
- 3,000$1.15976
- 5,000$1.10177
Quote It
Technical Details
- Series:SlimStack 53309
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:18
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:-
- Contact Finish:Tin
- Contact Finish Thickness:120.0µin (3.05µm)
- Mated Stacking Heights:-
- Height Above Board:0.185" (4.70mm)
