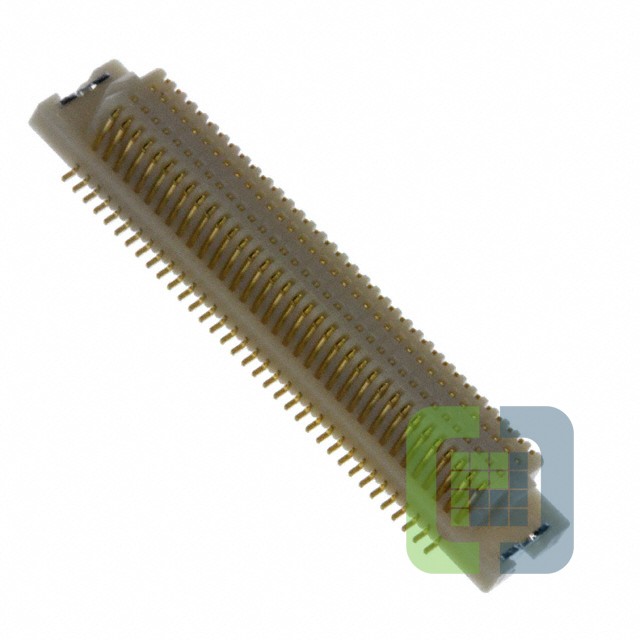

70R-JMDSS-G-1-TF(S)(LF)(SN)
JST
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 70POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 70R-JMDSS-G-1-TF(S)(LF)(SN) Datasheet
-
ECAD Model
- Share
In Stock: 2,518
Can ship immediately
Pricing:
- 1$2.82
- 1,500$1.51235
- 3,000$1.4602
Quote It
Technical Details
- Series:JMD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:70
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:4.5mm, 5mm, 6mm
- Height Above Board:0.122" (3.10mm)
