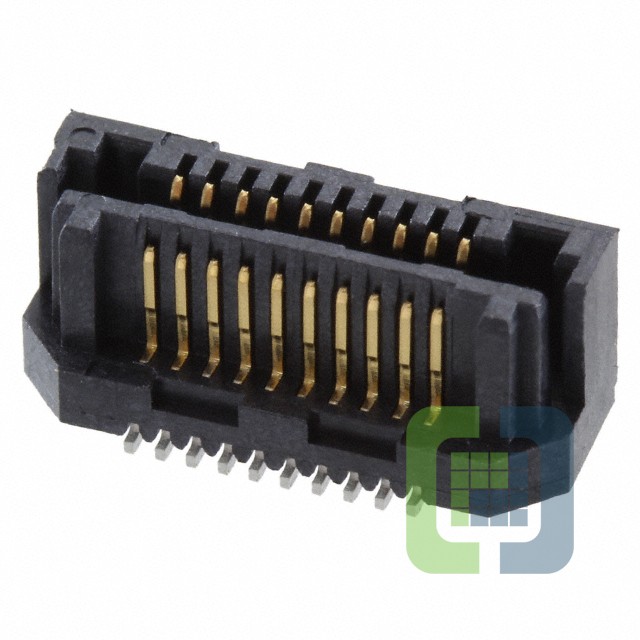

LSS-110-03-F-DV-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSS-110-03-F-DV-A Datasheet
-
ECAD Model
- Share
In Stock: 2,219
Can ship immediately
Pricing:
- 1$2.73
- 10$2.30649
- 25$2.20186
- 50$1.99197
- 100$1.78229
- 250$1.5726
- 500$1.46776
- 1,000$1.36293
- 2,500$1.3105
Quote It
Technical Details
- Series:Razor Beam™ LSS
- Package:Tube
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:20
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:7mm, 8mm, 10mm
- Height Above Board:0.209" (5.30mm)
