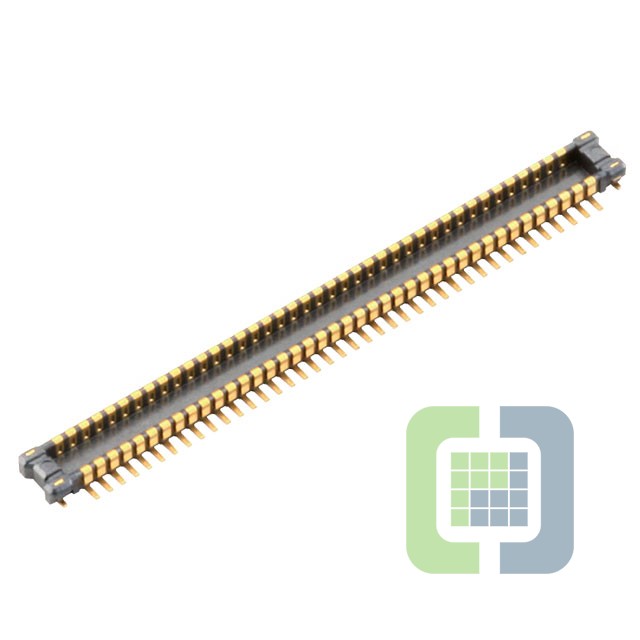

AXF6A8012A
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXF6A8012A Datasheet
-
ECAD Model
- Share
In Stock: 664
Can ship immediately
Pricing:
- 1$3.38
- 10$3.2448
- 25$2.9744
- 50$2.8392
- 100$2.704
- 250$2.366
- 500$2.2984
- 1,000$1.9604
- 2,500$1.8252
Quote It
Technical Details
- Series:A35P
- Package:Strip
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.014" (0.35mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:0.8mm
- Height Above Board:0.026" (0.65mm)
