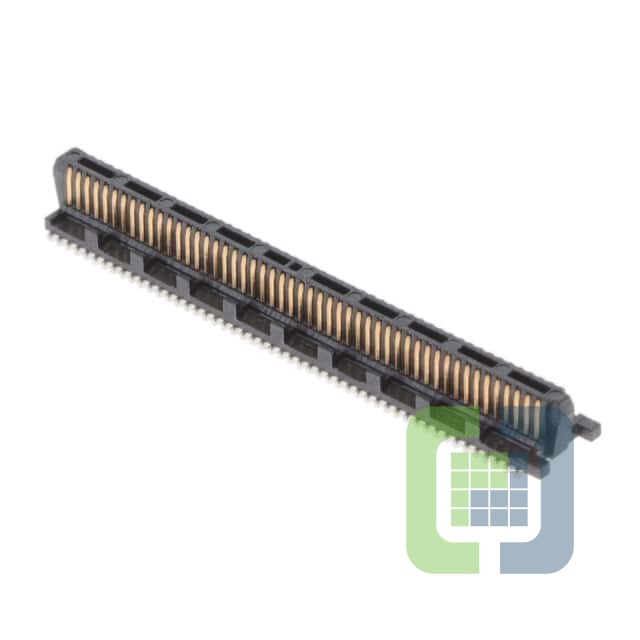

ST5-50-1.00-L-D-P-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ST5-50-1.00-L-D-P-TR Datasheet
-
ECAD Model
- Share
In Stock: 1,170
Can ship immediately
Pricing:
- 1$7.58
- 925$4.74
- 1,850$4.3292
Quote It
Technical Details
- Series:Razor Beam™ ST5
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:4mm, 4.5mm
- Height Above Board:0.121" (3.07mm)
