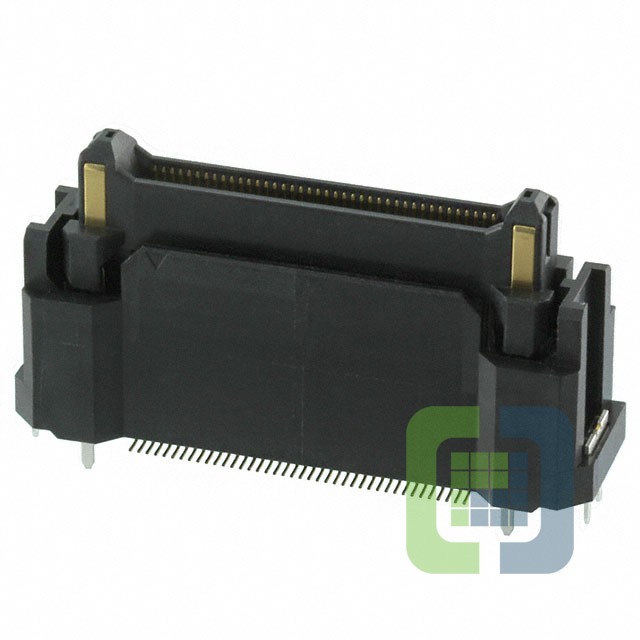

FX23-80P-0.5SV20
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX23-80P-0.5SV20 Datasheet
-
ECAD Model
- Share
In Stock: 223
Can ship immediately
Pricing:
- 1$5.28
- 10$5.0688
- 25$4.6464
- 72$4.43526
- 144$4.224
- 288$3.696
Quote It
Technical Details
- Series:FunctionMax™ FX23
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:84 (80 + 4 Power)
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:20mm, 30mm
- Height Above Board:0.703" (17.85mm)
