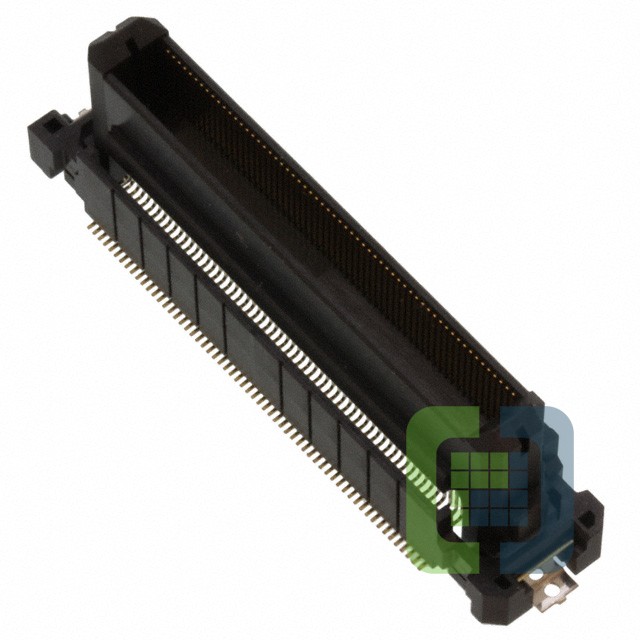

FX20-120P-0.5SV15
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX20-120P-0.5SV15 Datasheet
-
ECAD Model
- Share
In Stock: 335
Can ship immediately
Pricing:
- 1$6.71
- 10$6.43246
- 25$5.87333
- 50$5.59344
- 100$5.31377
Quote It
Technical Details
- Series:FunctionMax™ FX20
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:15mm, 25mm
- Height Above Board:0.520" (13.20mm)
